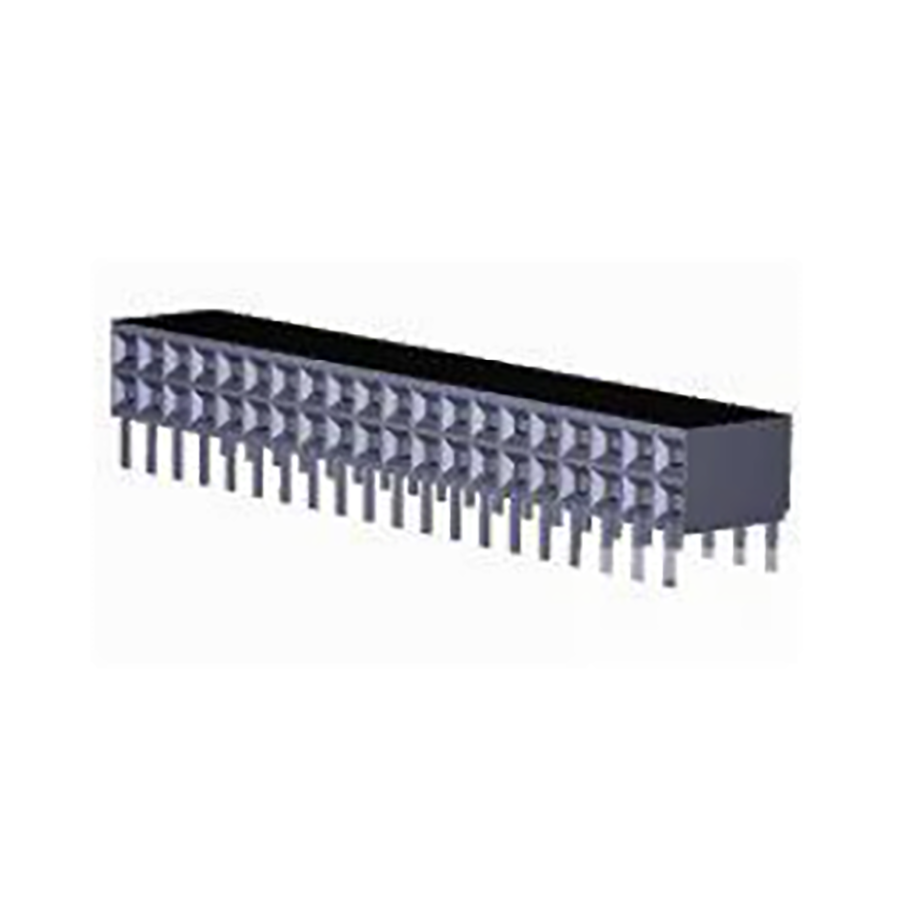

2-535512-5
Manufacturer:
TE Connectivity
Mfr.Part #:
2-535512-5
Datasheet:
Description:
Headers and Wire Housings Through Hole Connector, Receptacle, Socket Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.0452 mm |
| Packaging | Tube |
| Depth | 8.13 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 2.92 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 333 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Number of Contacts | 40 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Style | Socket |
| Contact Resistance | 12 MΩ |
| Contact Current Rating | 2 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 2.4 mm |
| Tail Length | 2.92 mm |
| Plating Thickness | 1.27 µm |
| Stackable | Yes |
| Mating Post Length | 3 mm |
| Sealable | No |
| Contact Finish Thickness - Mating | 762 nm |
| High Temperature Compatible | Yes |
| Termination Post Length | 2.92 mm |
| PCB Mount Retention | Without |
